The Analog Waveguide is a versatile stereo resonator based on analog bucket brigade delay chips. The two delays combine and mix in a unique way to create harmonic and inharmonic resonances for a wide range of possible sounds, from mallet instruments, to metallic sounds, to string-like instruments and organic non-linear drones.
Pre-order starting now!
Thanks for your patience, it has been a couple of years in the making with our small team, but finally we are ready to announce the pre-order of our long awaited module, the Analog Waveguide.
Production Partners & Timeline
We are very happy to partner with Vermona to bring this long conceived dream to reality. Vermona has an impeccable reputation for extraordinary quality and do all their production in house. Thank you Vermona, we are honored!
We have already bought and stocked most of the parts including the jacks, switches, display with protective glass, BBD delays, and other exotic silicon. We’re ready to start production and our timeline is scheduled as follows:
- Beginning of June: ordering of front plates, PCB production and SMD assembly
- Mid September: THT soldering and module assembly
- Beginning of October: calibration and quality control
- Beginning of November: packaging & shipping!
Pricing
To reward you for helping us to finance production with your pre-order and accepting the wait time until delivery, we are offering a 12.5% discount off the normal retail price of 699€. The pre-order price will be available for 30 units only.
Customers for outside of the EU please be aware that you may have to pay additional import taxes/tariffs.
Waveguide Audio Samples
Description & History

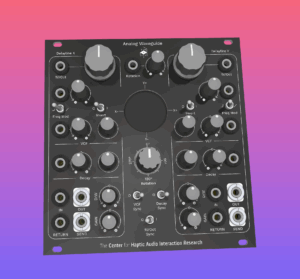

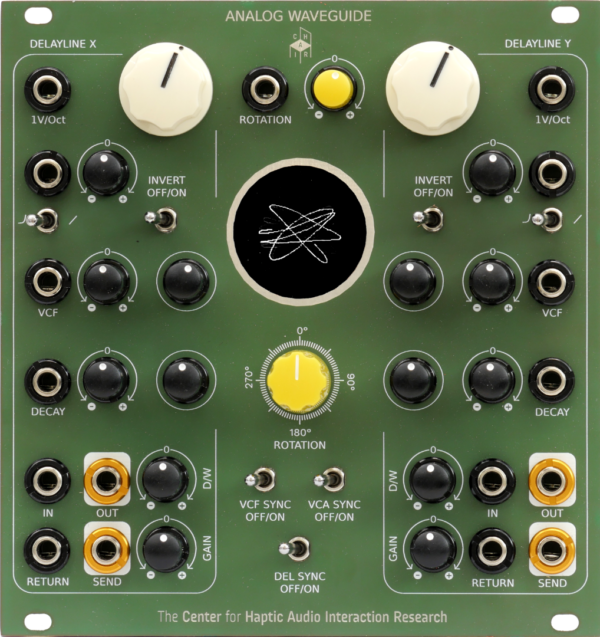

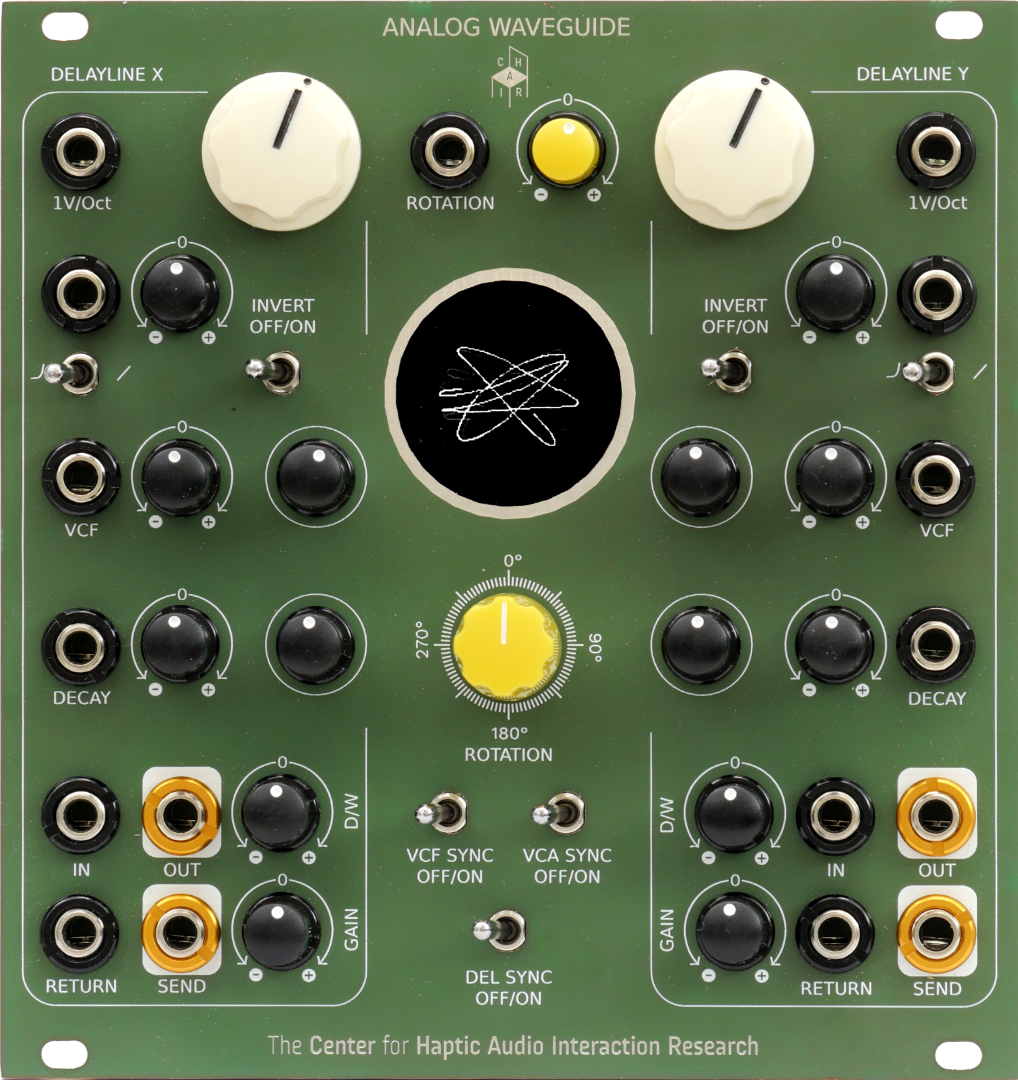

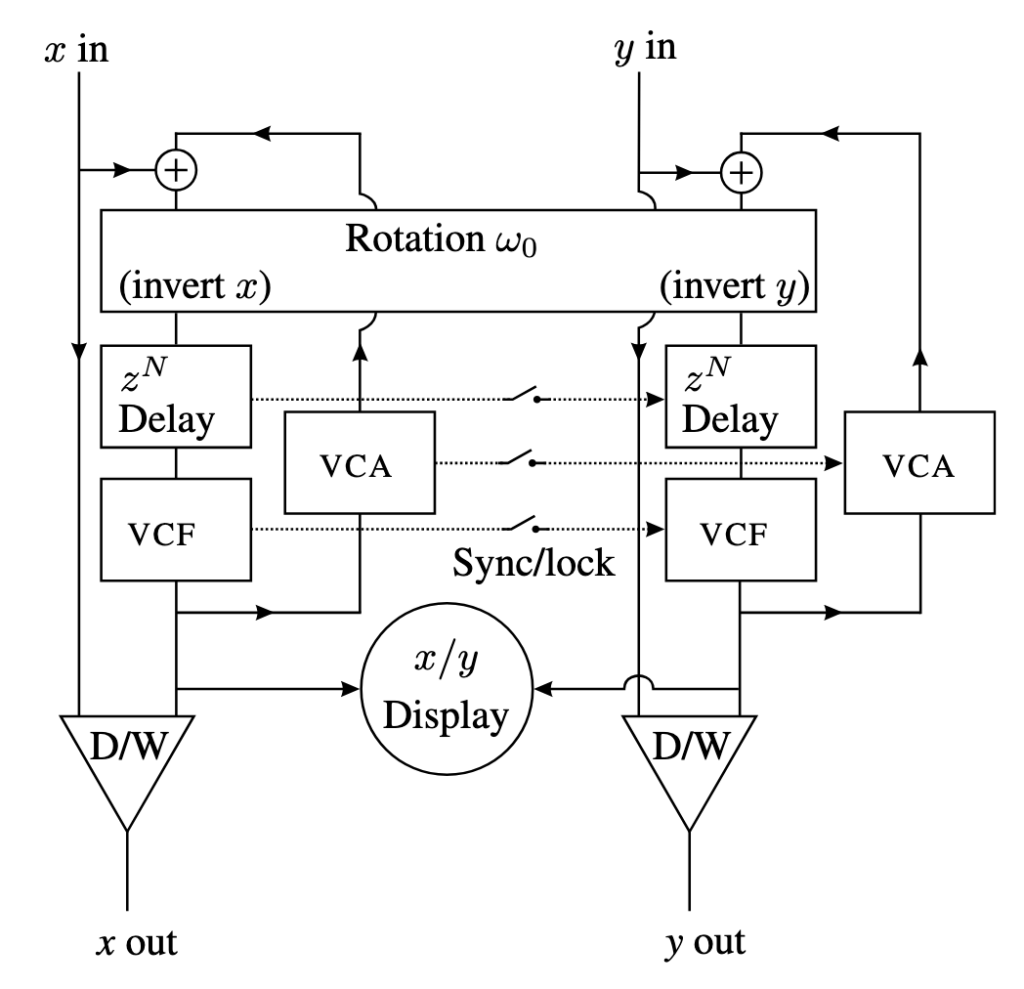

The Analog Waveguide is a versatile stereo resonator that feeds input signals into a rotation matrix. The matrix can be set to any angle. The Waveguide’s signal path is fully analog, and the delay lines are implemented with bucket brigade delays. The design was originally described in a theoretical paper by British mathematician Michael Gerzon (inventor of Ambisonics) in 1971, but was only finally implemented in 2011 by Miller Puckette (author of Max/MSP and Pure Data) but only in software. Our interpretation of the design re-implements and extends the original concept as a hardware Eurorack module with an all analog signal path. The resulting resonator is an analog waveguide capable of vivid physical modeling sound synthesis. The Waveguide’s integrated display shows the two delay line signals in a Cartesian coordinate system, visualizing the complex oscillating signal in the resonator. The wide range of displayed forms and movements are mesmerizing to watch and allow for a synaesthetic experience of the instrument. The visual representation of the signal also assists experienced users in remembering and recreating parameter settings for specific sounds.
